1.OneNet创建设备

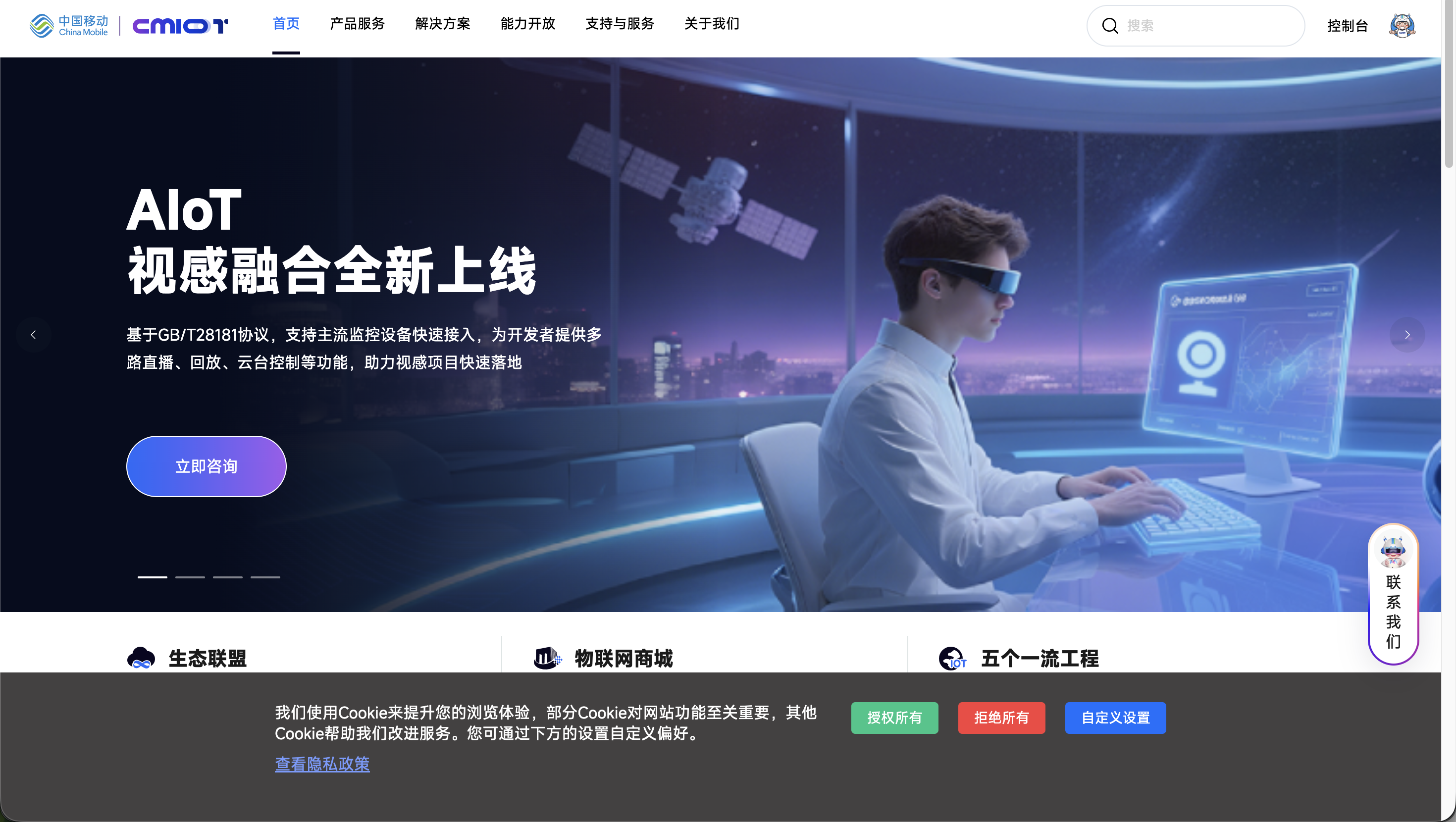

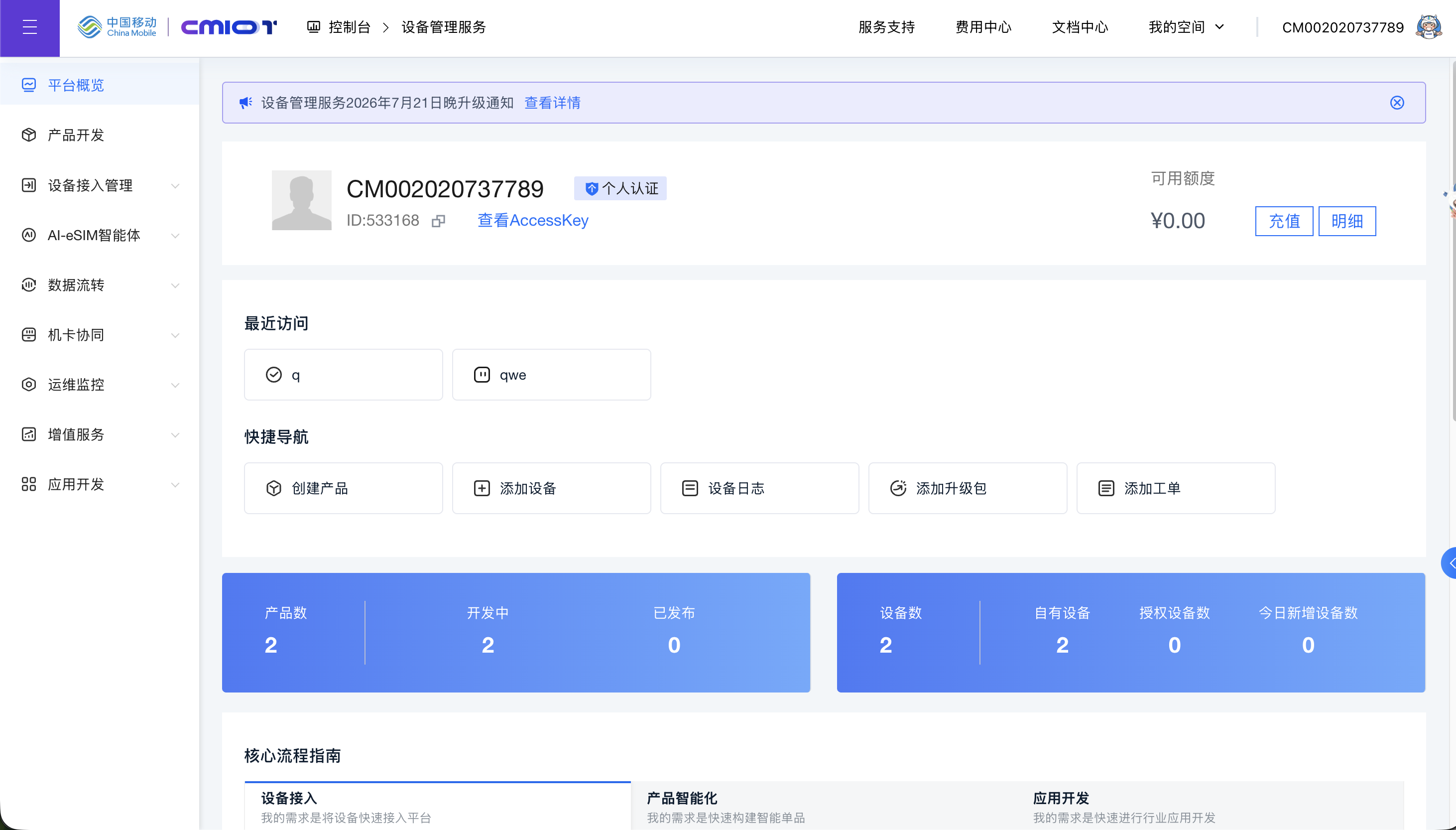

点击右上角的控制台

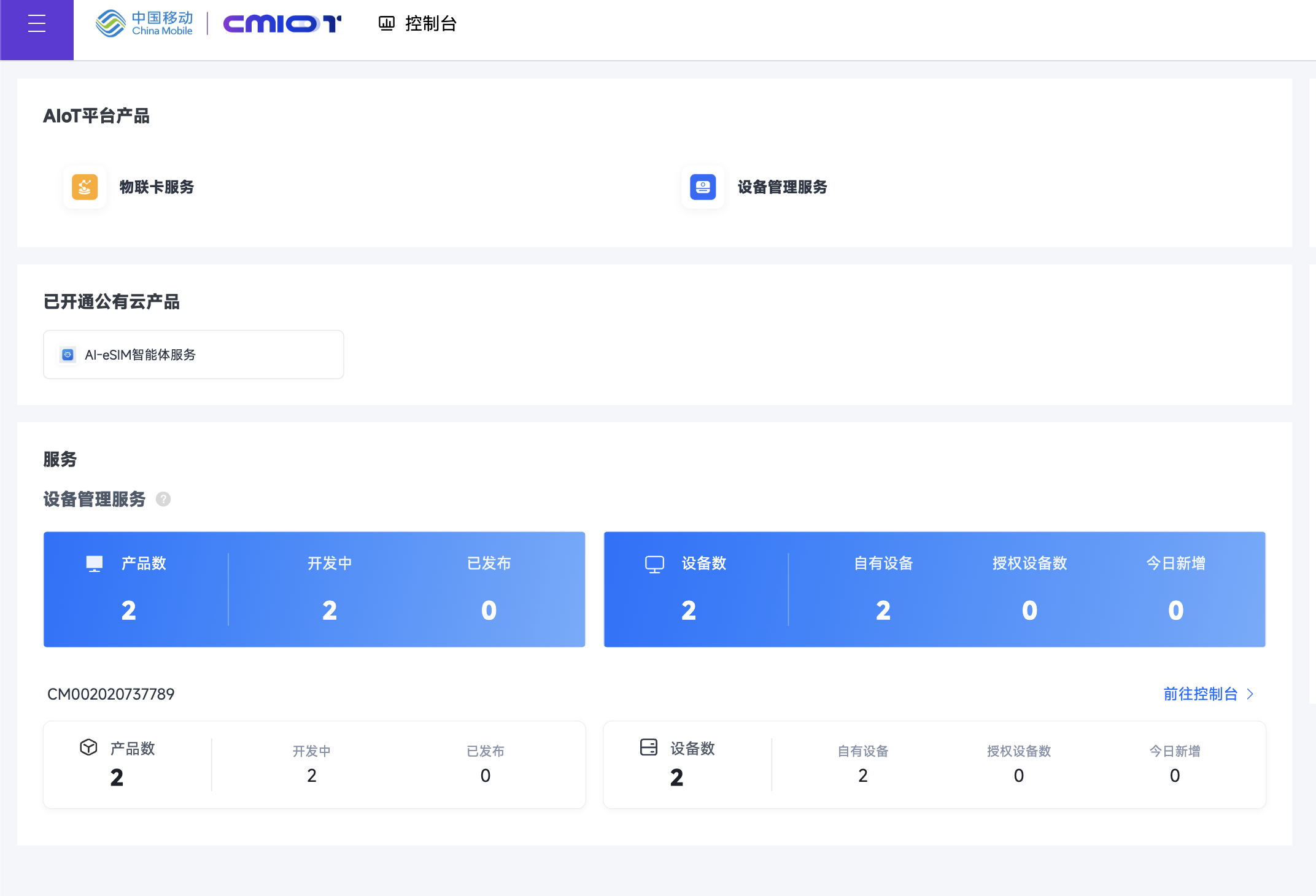

点击前往控制台

点击创建产品

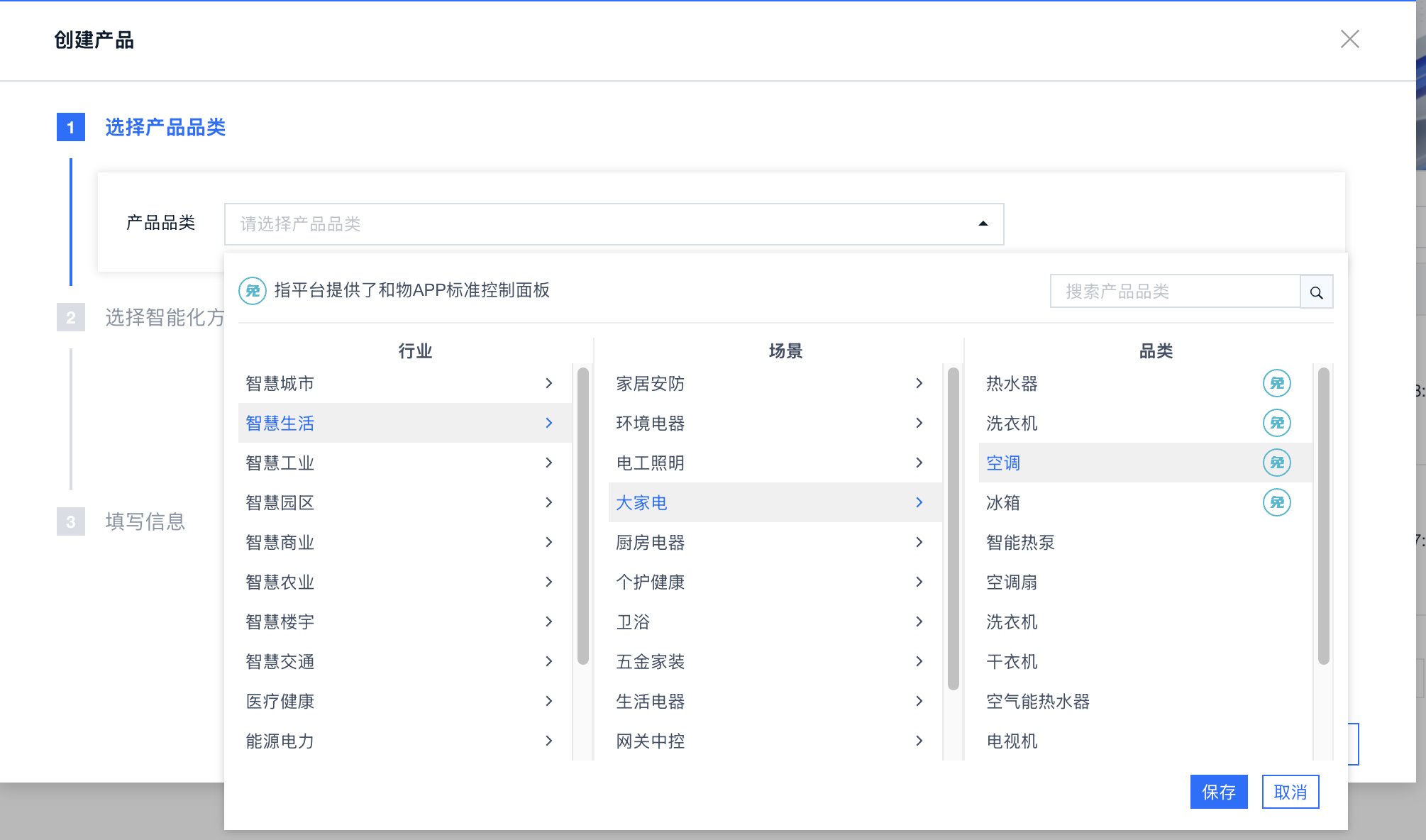

这里有很多产品，我们选择空调

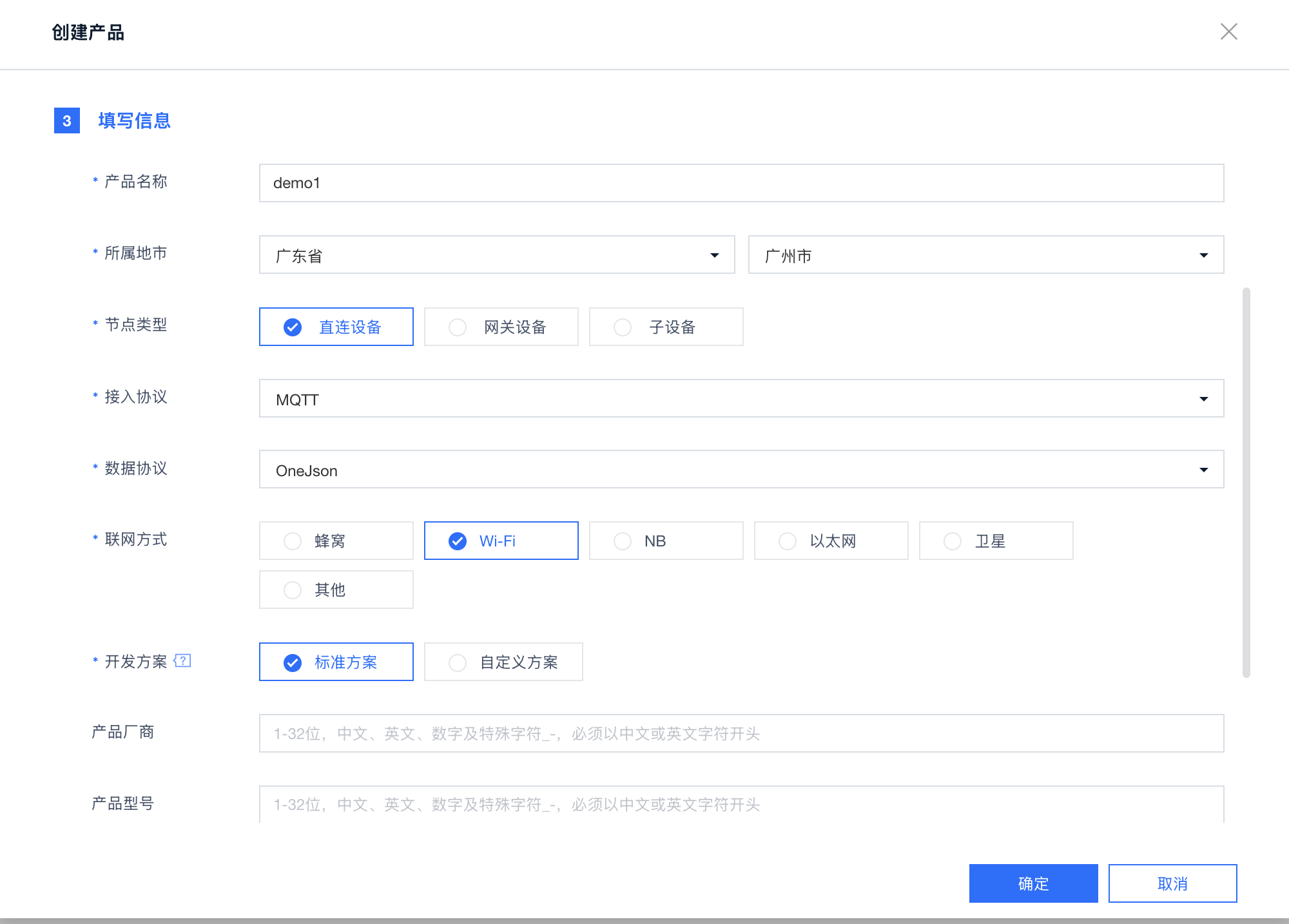

选择设备接入，产品名字自己随便写一个，其他的按照我的填写

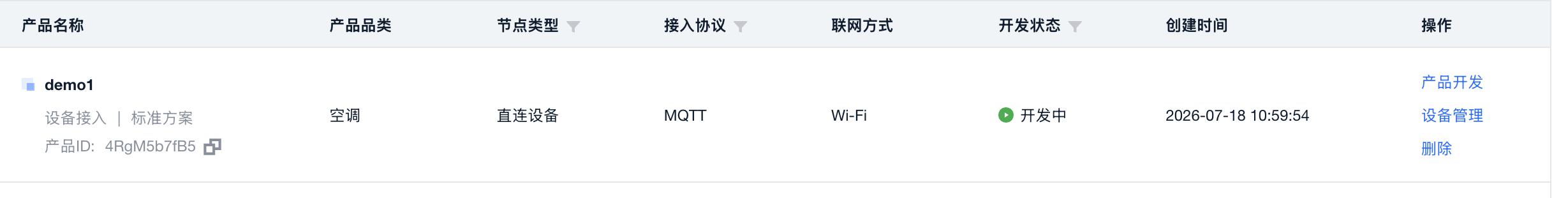

点击设备管理

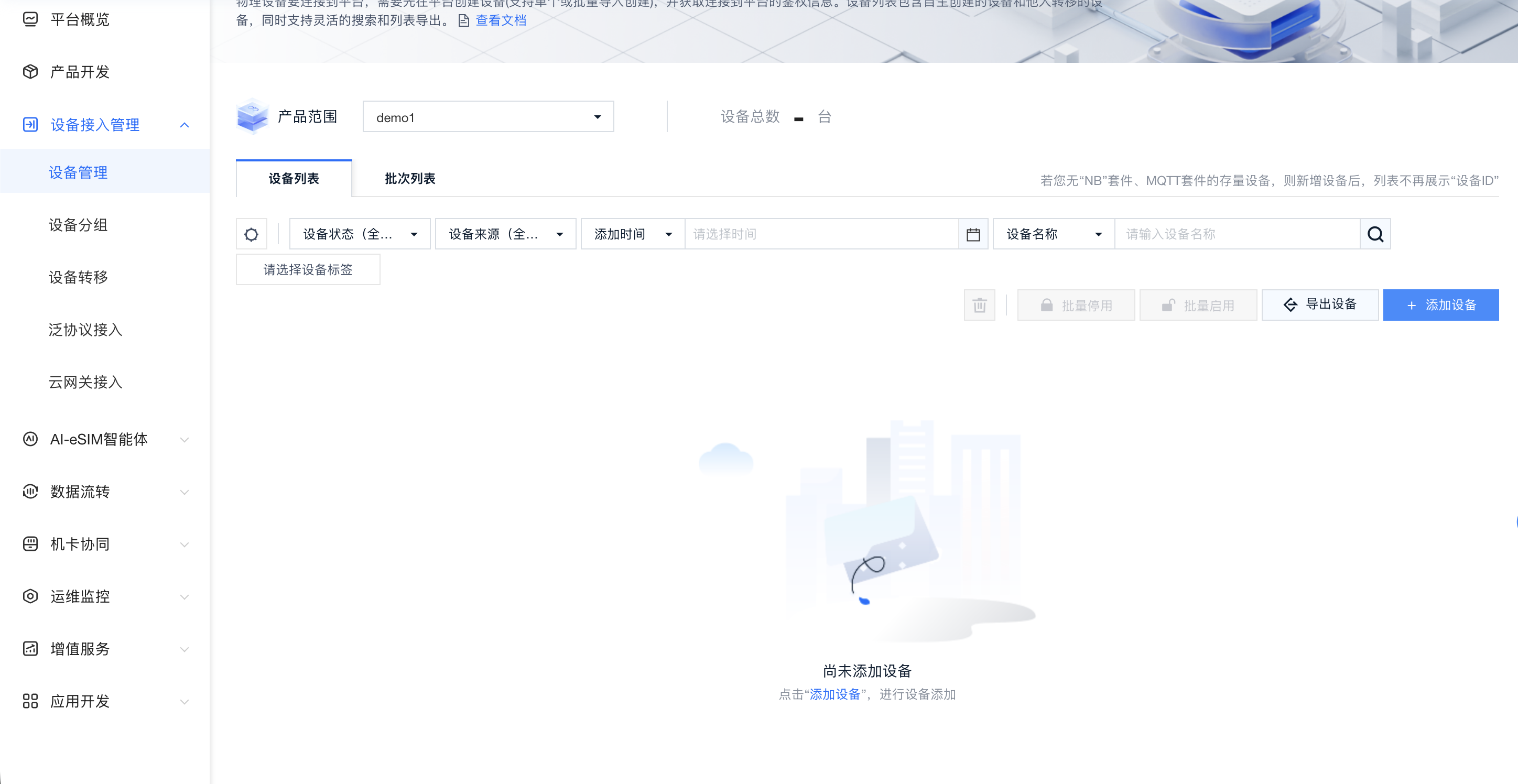

点击添加设备

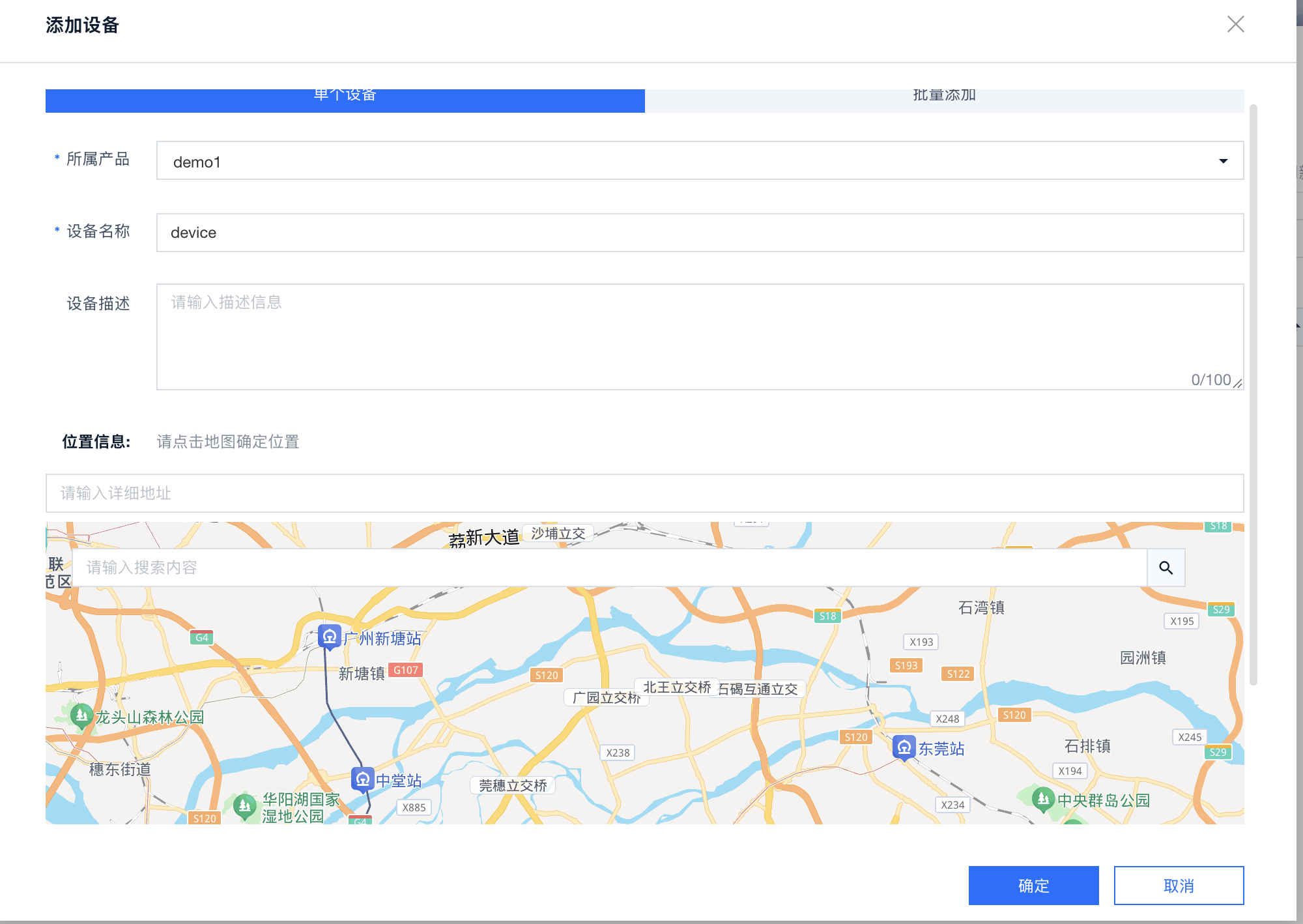

所属产品选择刚刚创建好的产品，设备名称自己看着填写，设备描述和位置信息可以不用填写，点击确定创建完设备

2.ESP32连接设备

我们创建一个空的esp-idf项目

在main.c里添加wifi代码

#include <stdio.h>
#include "esp_log.h"
#include "esp_wifi.h"
#include "nvs_flash.h"

#define TAG "main"

#define SSID ""
#define PASSWORD ""

static uint8_t s_retry_num = 0;

static void event_handler(void *arg, esp_event_base_t event_base, int32_t event_id, void *event_data)
{
    if (event_base == WIFI_EVENT && event_id == WIFI_EVENT_STA_START)
    {
        esp_wifi_connect();
    }
    else if (event_base == WIFI_EVENT && event_id == WIFI_EVENT_STA_DISCONNECTED)
    {
        if (s_retry_num < 5)
        {
            esp_wifi_connect();
            s_retry_num++;
            ESP_LOGI(TAG, "retry to connect to the AP");
        }
        ESP_LOGI(TAG, "connect to the AP fail");
    }
    else if (event_base == IP_EVENT && event_id == IP_EVENT_STA_GOT_IP)
    {
        ip_event_got_ip_t *event = (ip_event_got_ip_t *)event_data;
        ESP_LOGI(TAG, "got ip:" IPSTR, IP2STR(&event->ip_info.ip));
        s_retry_num = 0;
    }
}

void wifi_init(void)
{
    ESP_ERROR_CHECK(esp_netif_init());
    ESP_ERROR_CHECK(esp_event_loop_create_default());
    esp_netif_create_default_wifi_sta();
    wifi_init_config_t cfg = WIFI_INIT_CONFIG_DEFAULT();
    ESP_ERROR_CHECK(esp_wifi_init(&cfg));
    esp_event_handler_instance_t instance_any_id;
    esp_event_handler_instance_t instance_got_ip;
    ESP_ERROR_CHECK(esp_event_handler_instance_register(WIFI_EVENT, ESP_EVENT_ANY_ID, &event_handler, NULL, &instance_any_id));
    ESP_ERROR_CHECK(esp_event_handler_instance_register(IP_EVENT, IP_EVENT_STA_GOT_IP, &event_handler, NULL, &instance_got_ip));

    wifi_config_t wifi_cfg = {
        .sta = {
            .ssid = SSID,
            .password = PASSWORD,
        },
    };

    ESP_ERROR_CHECK(esp_wifi_set_config(WIFI_IF_STA, &wifi_cfg));
    ESP_ERROR_CHECK(esp_wifi_set_mode(WIFI_MODE_STA));
    ESP_ERROR_CHECK(esp_wifi_start());

    ESP_LOGI(TAG, "wifi_init_sta finished.");
}

接下来是mqtt代码

static void mqtt_event_handler(void *arg, esp_event_base_t base, int32_t event_id, void *event_data)
{
    esp_mqtt_event_handle_t event = event_data;
    switch (event_id)
    {
    case MQTT_EVENT_CONNECTED:
        ESP_LOGI(TAG, "MQTT_EVENT_CONNECTED");
        break;
    case MQTT_EVENT_DISCONNECTED:
        ESP_LOGI(TAG, "MQTT_EVENT_DISCONNECTED");
        break;
    case MQTT_EVENT_SUBSCRIBED:
        ESP_LOGI(TAG, "MQTT_EVENT_SUBSCRIBED");
        break;
    case MQTT_EVENT_PUBLISHED:
        ESP_LOGI(TAG, "MQTT_EVENT_PUBLISHED");
        break;
    case MQTT_EVENT_DATA:
        ESP_LOGI(TAG, "Received data on topic=%.*s", event->topic_len, event->topic);
        ESP_LOGI(TAG, "Data payload=%.*s", event->data_len, event->data);
        break;
    default:
        break;
    }
}

void mqtt_start(void)
{
    char token[256] = {0};

    generate_onenet_token(token, sizeof(token), KEY, TOKEN_RES, TOKEN_TIME);

    esp_mqtt_client_handle_t client;

    const esp_mqtt_client_config_t cfg = {
        .broker.address.uri = MQTT_URL,
        .credentials.client_id = DEVICE_NAME,
        .credentials.username = PRODUCTID,
        .credentials.authentication.password = token,
        .session.keepalive = 120,
    };

    client = esp_mqtt_client_init(&cfg);
    esp_mqtt_client_register_event(client, ESP_EVENT_ANY_ID, mqtt_event_handler, NULL);
    esp_mqtt_client_start(client);
}

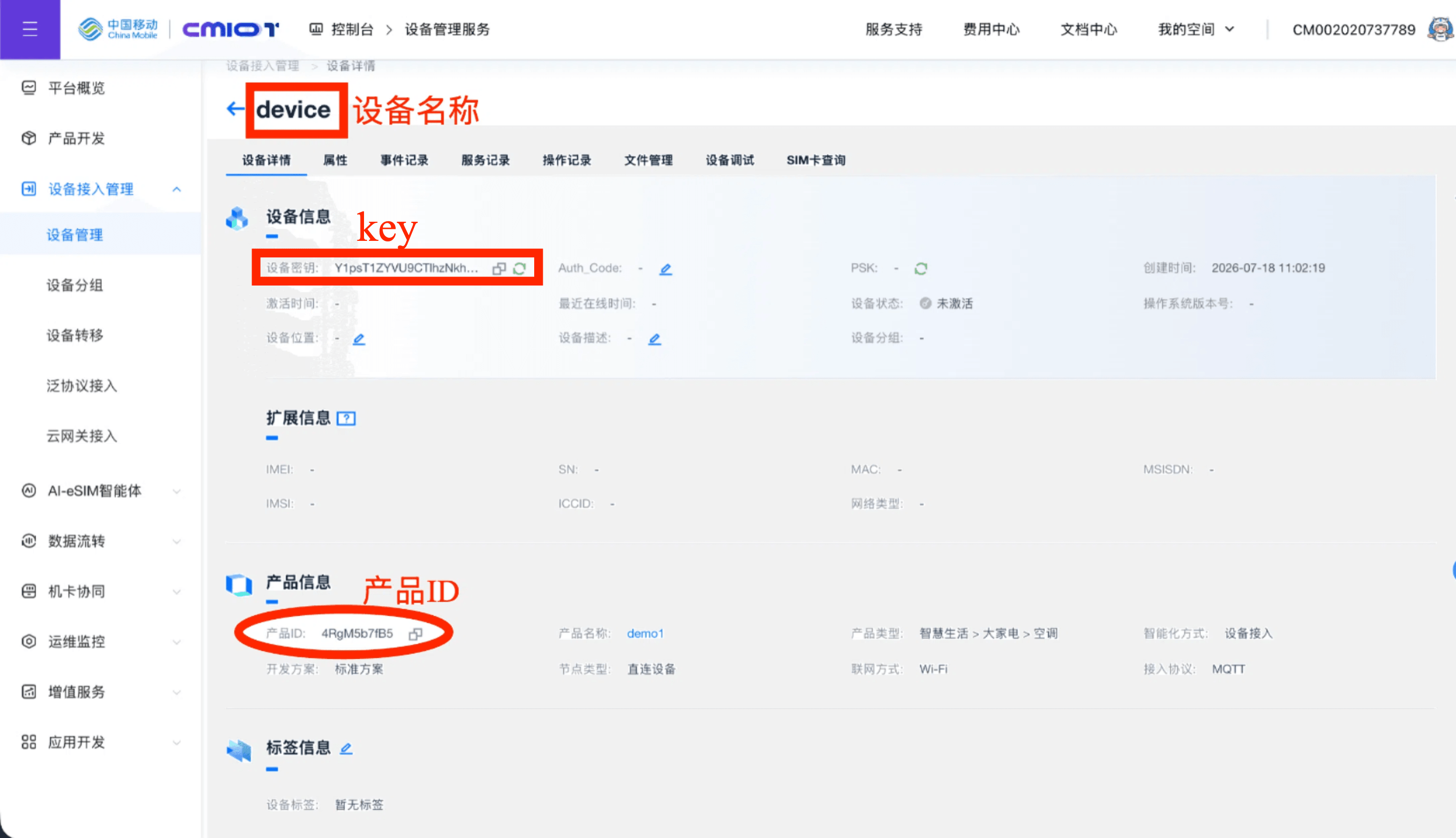

我们需要自己去获取一下设备名称和产品ID还有key

将这些填入代码

#define MQTT_URL "mqtt://mqtts.heclouds.com:1883"
#define DEVICE_NAME "device"
#define PRODUCTID "4RgM5b7fB5"
#define KEY "Y1psT1ZYVU9CTlhzNkhSU0t1TzJJRFZUaDhCM3VlNlI="
//这个是后面计算token需要使用到的 固定格式为products/产品ID/devices/设备名称
#define TOKEN_RES "products/4RgM5b7fB5/devices/device"

接下来我们需要计算token
https://iot.10086.cn/doc/aiot/fuse/detail/1487 这个是文档

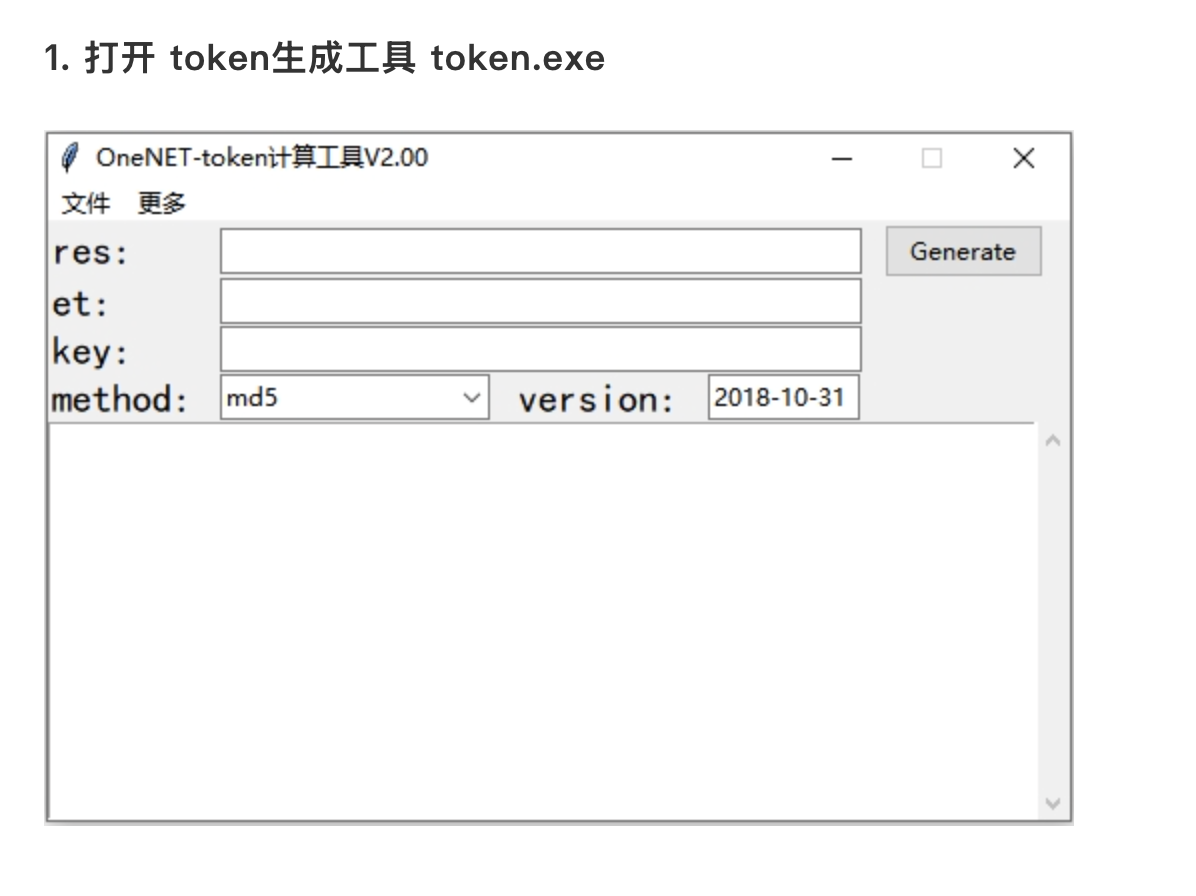

可以用官方给的工具来计算token

下载链接：https://open.iot.10086.cn/college/video/onenet-portal/2024-04-19/17134946071850.exe

res：products/4RgM5b7fB5/devices/device

key：Y1psT1ZYVU9CTlhzNkhSU0t1TzJJRFZUaDhCM3VlNlI=

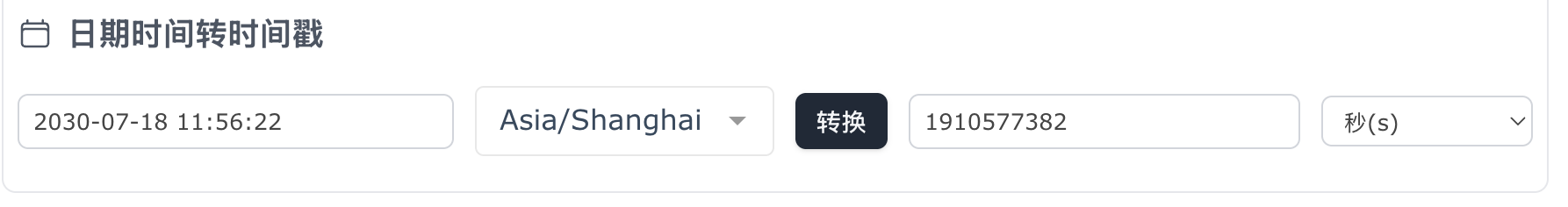

et是这个token的到期的时间戳，可以用这个网站进行获取 https://tool.lu/timestamp/

比如说我这里是2030年，转换出来的时间戳1910577382复制到et就行

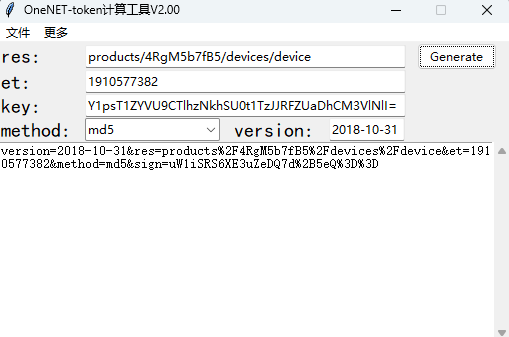

信息填完后获取token

不过一般我们不用上面那种方式，都是在代码里计算token的，下面来讲解一下token的计算

static void url_encode(const char *src, char *dest, int dest_len)
{
    while (*src && dest_len > 3)
    {
        if (*src == '+')
        {
            sprintf(dest, "%%2B");
            dest += 3;
            dest_len -= 3;
        }
        else if (*src == '/')
        {
            sprintf(dest, "%%2F");
            dest += 3;
            dest_len -= 3;
        }
        else if (*src == '=')
        {
            sprintf(dest, "%%3D");
            dest += 3;
            dest_len -= 3;
        }
        else
        {
            *dest++ = *src;
            dest_len--;
        }
        src++;
    }
    *dest = '\0';
}

/**
 * @brief 生成OneNET的Token (完美支持md5与sha256自动切换)
 */
void generate_onenet_token(char *out_token, size_t max_len, const char *access_key, const char *res, long et)
{
    const char *version = "2018-10-31";
    const char *method = "md5"; // 如果要换 sha256，只需要改这里即可

    // 1. 解码 AccessKey (Base64)
    unsigned char decoded_key[64] = {0};
    size_t decoded_key_len = 0;
    mbedtls_base64_decode(decoded_key, sizeof(decoded_key), &decoded_key_len, (const unsigned char *)access_key, strlen(access_key));

    // 2. 拼接待签名字符串
    char string_to_sign[256];
    snprintf(string_to_sign, sizeof(string_to_sign), "%ld\n%s\n%s\n%s", et, method, res, version);

    // 3. 🎯 修复：根据 method 动态选择算法类型和输出长度
    unsigned char hmac_output[32] = {0};
    size_t hmac_len = 0;
    const mbedtls_md_info_t *md_info = NULL;

    if (strcmp(method, "md5") == 0)
    {
        md_info = mbedtls_md_info_from_type(MBEDTLS_MD_MD5);
        hmac_len = 16; // MD5 结果是 16 字节
    }
    else
    {
        md_info = mbedtls_md_info_from_type(MBEDTLS_MD_SHA256);
        hmac_len = 32; // SHA256 结果是 32 字节
    }

    mbedtls_md_context_t ctx;
    mbedtls_md_init(&ctx);
    mbedtls_md_setup(&ctx, md_info, 1);
    mbedtls_md_hmac_starts(&ctx, decoded_key, decoded_key_len);
    mbedtls_md_hmac_update(&ctx, (const unsigned char *)string_to_sign, strlen(string_to_sign));
    mbedtls_md_hmac_finish(&ctx, hmac_output);
    mbedtls_md_free(&ctx);

    // 4. 🎯 修复：将真正的 hmac_len 传入 Base64 编码
    char base64_sign[64] = {0};
    size_t base64_len = 0;
    mbedtls_base64_encode((unsigned char *)base64_sign, sizeof(base64_sign), &base64_len, hmac_output, hmac_len);

    // 5. 对关键字段进行 URL 编码
    char encoded_res[128] = {0};
    char encoded_sign[128] = {0};
    url_encode(res, encoded_res, sizeof(encoded_res));
    url_encode(base64_sign, encoded_sign, sizeof(encoded_sign));

    // 6. 最终拼装
    snprintf(out_token, max_len, "version=%s&res=%s&et=%ld&method=%s&sign=%s", version, encoded_res, et, method, encoded_sign);
}

完整代码

烧录代码到esp32

#include <stdio.h>
#include "esp_log.h"
#include "esp_wifi.h"
#include "nvs_flash.h"
#include "mqtt_client.h"
#include "mbedtls/md.h"
#include "mbedtls/base64.h"

#define TAG "main"

#define SSID "ChinaNet-cfu6"
#define PASSWORD "6vtndlma"

#define MQTT_URL "mqtt://mqtts.heclouds.com:1883"
#define DEVICE_NAME "device"
#define PRODUCTID "4RgM5b7fB5"
#define KEY "Y1psT1ZYVU9CTlhzNkhSU0t1TzJJRFZUaDhCM3VlNlI="
#define TOKEN_RES "products/4RgM5b7fB5/devices/device"
#define TOKEN_TIME 1910577382

void mqtt_start(void);

static uint8_t s_retry_num = 0;

static void url_encode(const char *src, char *dest, int dest_len)
{
    while (*src && dest_len > 3)
    {
        if (*src == '+')
        {
            sprintf(dest, "%%2B");
            dest += 3;
            dest_len -= 3;
        }
        else if (*src == '/')
        {
            sprintf(dest, "%%2F");
            dest += 3;
            dest_len -= 3;
        }
        else if (*src == '=')
        {
            sprintf(dest, "%%3D");
            dest += 3;
            dest_len -= 3;
        }
        else
        {
            *dest++ = *src;
            dest_len--;
        }
        src++;
    }
    *dest = '\0';
}

/**
 * @brief 生成OneNET的Token (完美支持md5与sha256自动切换)
 * @param out_token token的输出
 * @param max_len token的最大长度
 * @param access_key key
 * @param res token_res
 * @param et 时间戳
 */
void generate_onenet_token(char *out_token, size_t max_len, const char *access_key, const char *res, long et)
{
    const char *version = "2018-10-31";
    const char *method = "md5"; // 如果要换 sha256，只需要改这里即可

    // 1. 解码 AccessKey (Base64)
    unsigned char decoded_key[64] = {0};
    size_t decoded_key_len = 0;
    mbedtls_base64_decode(decoded_key, sizeof(decoded_key), &decoded_key_len, (const unsigned char *)access_key, strlen(access_key));

    // 2. 拼接待签名字符串
    char string_to_sign[256];
    snprintf(string_to_sign, sizeof(string_to_sign), "%ld\n%s\n%s\n%s", et, method, res, version);

    // 3. 🎯 修复：根据 method 动态选择算法类型和输出长度
    unsigned char hmac_output[32] = {0};
    size_t hmac_len = 0;
    const mbedtls_md_info_t *md_info = NULL;

    if (strcmp(method, "md5") == 0)
    {
        md_info = mbedtls_md_info_from_type(MBEDTLS_MD_MD5);
        hmac_len = 16; // MD5 结果是 16 字节
    }
    else
    {
        md_info = mbedtls_md_info_from_type(MBEDTLS_MD_SHA256);
        hmac_len = 32; // SHA256 结果是 32 字节
    }

    mbedtls_md_context_t ctx;
    mbedtls_md_init(&ctx);
    mbedtls_md_setup(&ctx, md_info, 1);
    mbedtls_md_hmac_starts(&ctx, decoded_key, decoded_key_len);
    mbedtls_md_hmac_update(&ctx, (const unsigned char *)string_to_sign, strlen(string_to_sign));
    mbedtls_md_hmac_finish(&ctx, hmac_output);
    mbedtls_md_free(&ctx);

    // 4. 🎯 修复：将真正的 hmac_len 传入 Base64 编码
    char base64_sign[64] = {0};
    size_t base64_len = 0;
    mbedtls_base64_encode((unsigned char *)base64_sign, sizeof(base64_sign), &base64_len, hmac_output, hmac_len);

    // 5. 对关键字段进行 URL 编码
    char encoded_res[128] = {0};
    char encoded_sign[128] = {0};
    url_encode(res, encoded_res, sizeof(encoded_res));
    url_encode(base64_sign, encoded_sign, sizeof(encoded_sign));

    // 6. 最终拼装
    snprintf(out_token, max_len, "version=%s&res=%s&et=%ld&method=%s&sign=%s", version, encoded_res, et, method, encoded_sign);
}


static void event_handler(void *arg, esp_event_base_t event_base, int32_t event_id, void *event_data)
{
    if (event_base == WIFI_EVENT && event_id == WIFI_EVENT_STA_START)
    {
        esp_wifi_connect();
    }
    else if (event_base == WIFI_EVENT && event_id == WIFI_EVENT_STA_DISCONNECTED)
    {
        if (s_retry_num < 5)
        {
            esp_wifi_connect();
            s_retry_num++;
            ESP_LOGI(TAG, "retry to connect to the AP");
        }
        ESP_LOGI(TAG, "connect to the AP fail");
    }
    else if (event_base == IP_EVENT && event_id == IP_EVENT_STA_GOT_IP)
    {
        ip_event_got_ip_t *event = (ip_event_got_ip_t *)event_data;
        ESP_LOGI(TAG, "got ip:" IPSTR, IP2STR(&event->ip_info.ip));
        s_retry_num = 0;
        mqtt_start();
    }
}

static void mqtt_event_handler(void *arg, esp_event_base_t base, int32_t event_id, void *event_data)
{
    esp_mqtt_event_handle_t event = event_data;
    switch (event_id)
    {
    case MQTT_EVENT_CONNECTED:
        ESP_LOGI(TAG, "MQTT_EVENT_CONNECTED");
        break;
    case MQTT_EVENT_DISCONNECTED:
        ESP_LOGI(TAG, "MQTT_EVENT_DISCONNECTED");
        break;
    case MQTT_EVENT_SUBSCRIBED:
        ESP_LOGI(TAG, "MQTT_EVENT_SUBSCRIBED");
        break;
    case MQTT_EVENT_PUBLISHED:
        ESP_LOGI(TAG, "MQTT_EVENT_PUBLISHED");
        break;
    case MQTT_EVENT_DATA:
        ESP_LOGI(TAG, "Received data on topic=%.*s", event->topic_len, event->topic);
        ESP_LOGI(TAG, "Data payload=%.*s", event->data_len, event->data);
        break;
    default:
        break;
    }
}

void wifi_init(void)
{
    ESP_ERROR_CHECK(esp_netif_init());
    ESP_ERROR_CHECK(esp_event_loop_create_default());
    esp_netif_create_default_wifi_sta();
    wifi_init_config_t cfg = WIFI_INIT_CONFIG_DEFAULT();
    ESP_ERROR_CHECK(esp_wifi_init(&cfg));
    esp_event_handler_instance_t instance_any_id;
    esp_event_handler_instance_t instance_got_ip;
    ESP_ERROR_CHECK(esp_event_handler_instance_register(WIFI_EVENT, ESP_EVENT_ANY_ID, &event_handler, NULL, &instance_any_id));
    ESP_ERROR_CHECK(esp_event_handler_instance_register(IP_EVENT, IP_EVENT_STA_GOT_IP, &event_handler, NULL, &instance_got_ip));

    wifi_config_t wifi_cfg = {
        .sta = {
            .ssid = SSID,
            .password = PASSWORD,
        },
    };

    ESP_ERROR_CHECK(esp_wifi_set_config(WIFI_IF_STA, &wifi_cfg));
    ESP_ERROR_CHECK(esp_wifi_set_mode(WIFI_MODE_STA));
    ESP_ERROR_CHECK(esp_wifi_start());

    ESP_LOGI(TAG, "wifi_init_sta finished.");
}


void mqtt_start(void)
{
    char token[256] = {0};

    generate_onenet_token(token, sizeof(token), KEY, TOKEN_RES, TOKEN_TIME);

    esp_mqtt_client_handle_t client;

    const esp_mqtt_client_config_t cfg = {
        .broker.address.uri = MQTT_URL,
        .credentials.client_id = DEVICE_NAME,
        .credentials.username = PRODUCTID,
        .credentials.authentication.password = token,
        .session.keepalive = 120,
    };

    client = esp_mqtt_client_init(&cfg);
    esp_mqtt_client_register_event(client, ESP_EVENT_ANY_ID, mqtt_event_handler, NULL);
    esp_mqtt_client_start(client);
}


void app_main(void)
{

    esp_err_t ret = nvs_flash_init();
    if (ret == ESP_ERR_NVS_NO_FREE_PAGES || ret == ESP_ERR_NVS_NEW_VERSION_FOUND)
    {
        ESP_ERROR_CHECK(nvs_flash_erase());
        ret = nvs_flash_init();
    }
    ESP_ERROR_CHECK(ret);

    wifi_init();
}

烧录成功并且成功连接上mqtt后打印

I (1942) main: MQTT_EVENT_CONNECTED

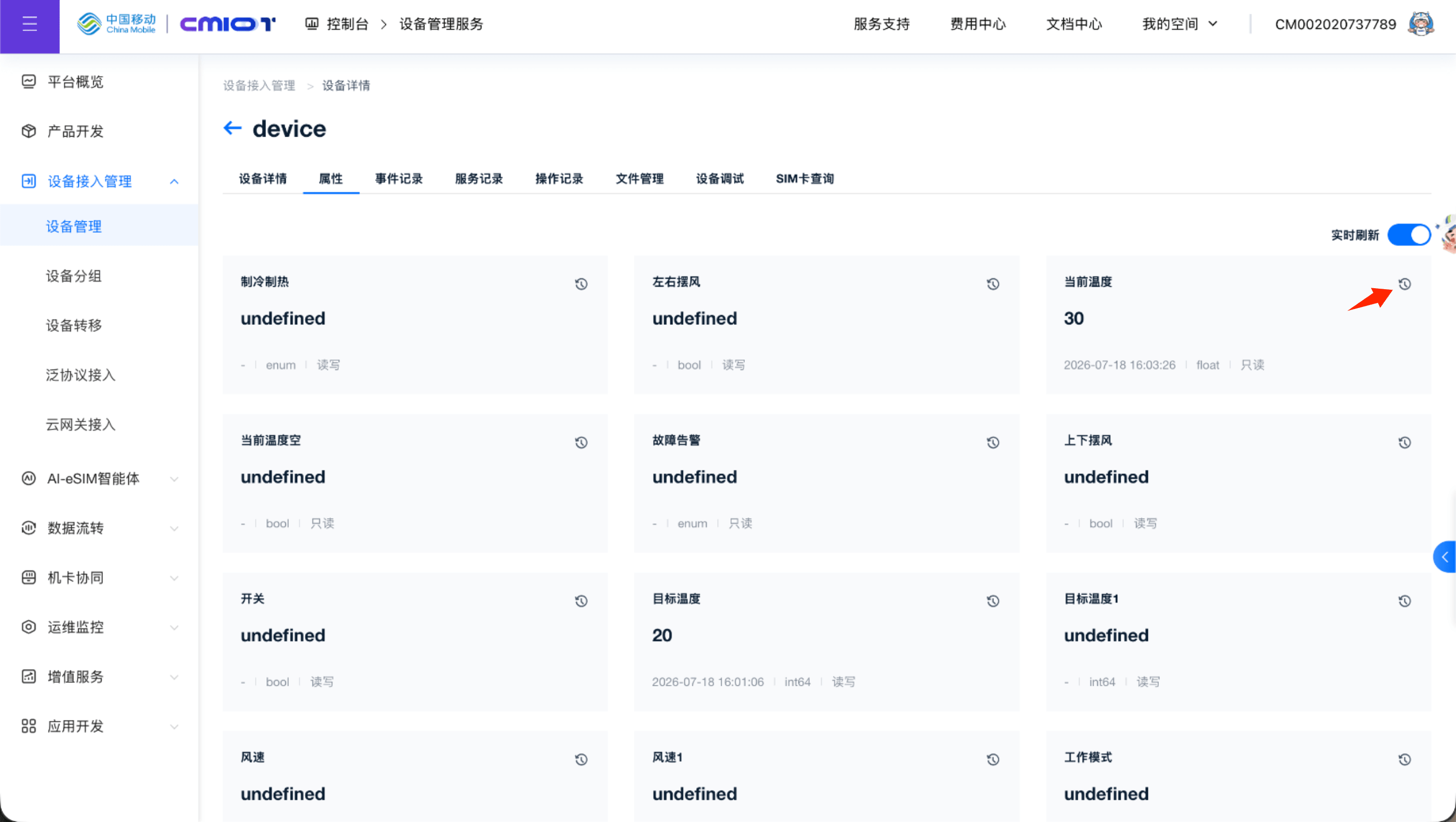

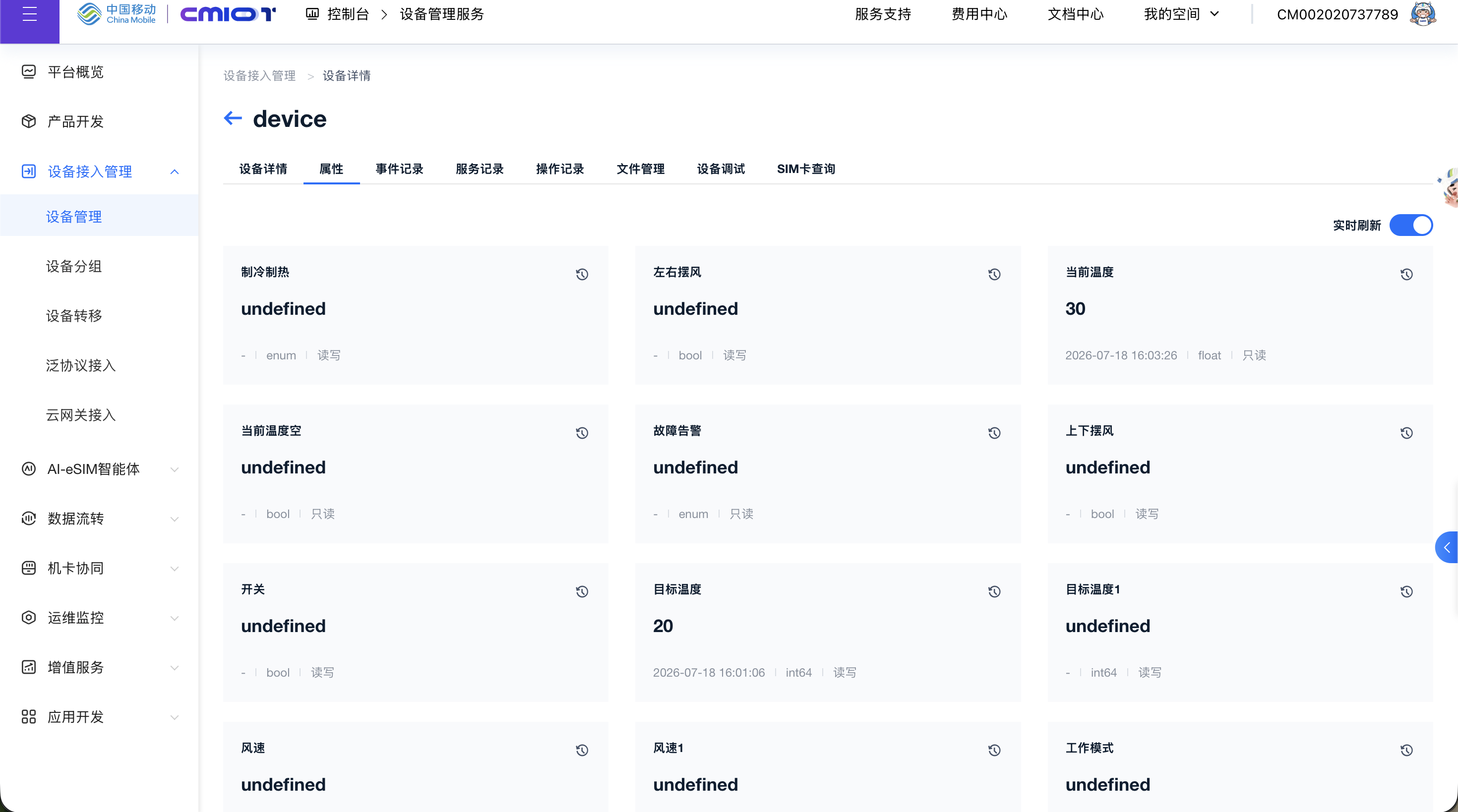

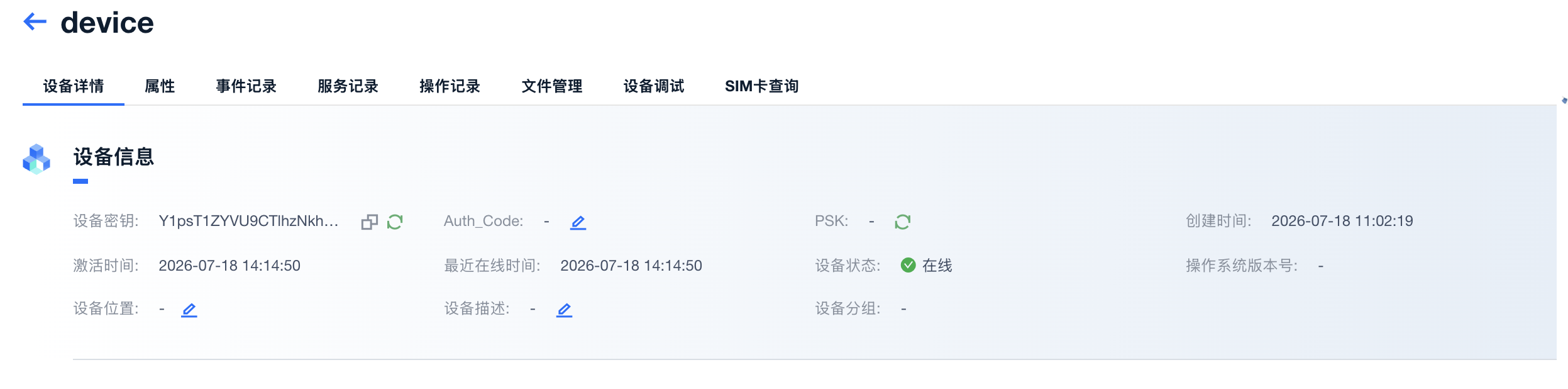

OneNet设备状态显示在线

3.设备通讯

成功连接上OneNe后，我们需要让esp32和物模型主题进行通讯

文档：https://iot.10086.cn/doc/aiot/fuse/detail/920

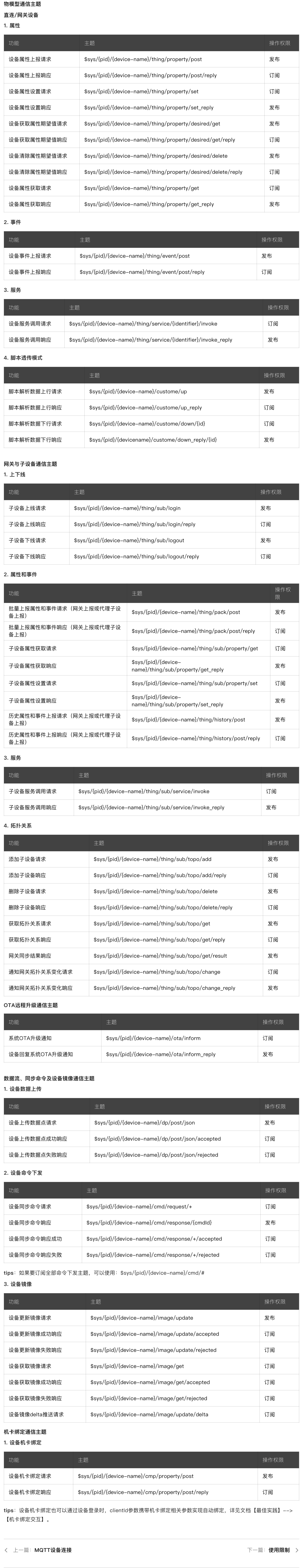

有很多通讯主题，我们主要来了解一下这几个

功能	主题	操作权限
设备属性上报请求	$sys/{pid}/{device-name}/thing/property/post	发布
设备属性设置请求	$sys/{pid}/{device-name}/thing/property/set	订阅
设备属性获取请求	$sys/{pid}/{device-name}/thing/property/get	订阅

pid：PRODUCTID

device-name：DEVICE_NAME

接下来我们可以增加以下代码来进行通讯

//Topic主题
#define TOPIC_POST "$sys/4RgM5b7fB5/device/thing/property/post"
#define TOPIC_GET "$sys/4RgM5b7fB5/device/thing/property/get"
#define TOPIC_SET "$sys/4RgM5b7fB5/device/thing/property/set"

//写在mqtt_event_handler的MQTT_EVENT_CONNECTED事件里
//订阅主题
esp_mqtt_client_subscribe(event->client, TOPIC_GET, 1);
esp_mqtt_client_subscribe(event->client, TOPIC_SET, 1);
//上报当前温度属性
//数据报不能有错，否则云端不会去处理
static const char *data = "{\"id\":\"123\",\"version\":\"1.0\",\"params\":{\"currentTemp\":{\"value\":30}}}";
esp_mqtt_client_publish(event->client, TOPIC_POST, data, strlen(data), 1, 0);

向 OneNET 上报设备属性时，必须严格遵循以下 JSON 结构

{ "id": "123", "version": "1.0", "params": { "currentTemp": { "value": 30 } } }

字段	类型	必填	说明
`id`	String	✅ 是	消息唯一标识符。用于平台去重和响应关联，建议每次上报使用递增数字或时间戳，避免写死固定值导致后续消息被丢弃。
`version`	String	✅ 是	物模型协议版本号，当前固定填写 `"1.0"`。
`params`	Object	✅ 是	属性数据集合。Key 为物模型中定义的属性标识符（如 `currentTemp`），Value 为包含 `value` 键的对象。

属性标识符在设备管理里的设备详情里的属性里看，点击红色箭头指向的地方

标识符就是"params": { "currentTemp": { "value": 30 } } 这里的currentTemp

完整代码

#include <stdio.h>
#include "esp_log.h"
#include "esp_wifi.h"
#include "nvs_flash.h"
#include "mqtt_client.h"
#include "mbedtls/md.h"
#include "mbedtls/base64.h"

#define TAG "main"

#define SSID "ChinaNet-cfu6"
#define PASSWORD "6vtndlma"

#define MQTT_URL "mqtt://mqtts.heclouds.com:1883"
#define DEVICE_NAME "device"
#define PRODUCTID "4RgM5b7fB5"
#define KEY "Y1psT1ZYVU9CTlhzNkhSU0t1TzJJRFZUaDhCM3VlNlI="
#define TOKEN_RES "products/4RgM5b7fB5/devices/device"
#define TOKEN_TIME 1910577382

#define TOPIC_POST "$sys/4RgM5b7fB5/device/thing/property/post"
#define TOPIC_GET "$sys/4RgM5b7fB5/device/thing/property/get"
#define TOPIC_SET "$sys/4RgM5b7fB5/device/thing/property/set"

void mqtt_start(void);

static uint8_t s_retry_num = 0;

static void url_encode(const char *src, char *dest, int dest_len)
{
    while (*src && dest_len > 3)
    {
        if (*src == '+')
        {
            sprintf(dest, "%%2B");
            dest += 3;
            dest_len -= 3;
        }
        else if (*src == '/')
        {
            sprintf(dest, "%%2F");
            dest += 3;
            dest_len -= 3;
        }
        else if (*src == '=')
        {
            sprintf(dest, "%%3D");
            dest += 3;
            dest_len -= 3;
        }
        else
        {
            *dest++ = *src;
            dest_len--;
        }
        src++;
    }
    *dest = '\0';
}

/**
 * @brief 生成OneNET的Token (完美支持md5与sha256自动切换)
 * @param out_token token的输出
 * @param max_len token的最大长度
 * @param access_key key
 * @param res token_res
 * @param et 时间戳
 */
void generate_onenet_token(char *out_token, size_t max_len, const char *access_key, const char *res, long et)
{
    const char *version = "2018-10-31";
    const char *method = "md5"; // 如果要换 sha256，只需要改这里即可

    // 1. 解码 AccessKey (Base64)
    unsigned char decoded_key[64] = {0};
    size_t decoded_key_len = 0;
    mbedtls_base64_decode(decoded_key, sizeof(decoded_key), &decoded_key_len, (const unsigned char *)access_key, strlen(access_key));

    // 2. 拼接待签名字符串
    char string_to_sign[256];
    snprintf(string_to_sign, sizeof(string_to_sign), "%ld\n%s\n%s\n%s", et, method, res, version);

    // 3. 🎯 修复：根据 method 动态选择算法类型和输出长度
    unsigned char hmac_output[32] = {0};
    size_t hmac_len = 0;
    const mbedtls_md_info_t *md_info = NULL;

    if (strcmp(method, "md5") == 0)
    {
        md_info = mbedtls_md_info_from_type(MBEDTLS_MD_MD5);
        hmac_len = 16; // MD5 结果是 16 字节
    }
    else
    {
        md_info = mbedtls_md_info_from_type(MBEDTLS_MD_SHA256);
        hmac_len = 32; // SHA256 结果是 32 字节
    }

    mbedtls_md_context_t ctx;
    mbedtls_md_init(&ctx);
    mbedtls_md_setup(&ctx, md_info, 1);
    mbedtls_md_hmac_starts(&ctx, decoded_key, decoded_key_len);
    mbedtls_md_hmac_update(&ctx, (const unsigned char *)string_to_sign, strlen(string_to_sign));
    mbedtls_md_hmac_finish(&ctx, hmac_output);
    mbedtls_md_free(&ctx);

    // 4. 🎯 修复：将真正的 hmac_len 传入 Base64 编码
    char base64_sign[64] = {0};
    size_t base64_len = 0;
    mbedtls_base64_encode((unsigned char *)base64_sign, sizeof(base64_sign), &base64_len, hmac_output, hmac_len);

    // 5. 对关键字段进行 URL 编码
    char encoded_res[128] = {0};
    char encoded_sign[128] = {0};
    url_encode(res, encoded_res, sizeof(encoded_res));
    url_encode(base64_sign, encoded_sign, sizeof(encoded_sign));

    // 6. 最终拼装
    snprintf(out_token, max_len, "version=%s&res=%s&et=%ld&method=%s&sign=%s", version, encoded_res, et, method, encoded_sign);
}

static void event_handler(void *arg, esp_event_base_t event_base, int32_t event_id, void *event_data)
{
    if (event_base == WIFI_EVENT && event_id == WIFI_EVENT_STA_START)
    {
        esp_wifi_connect();
    }
    else if (event_base == WIFI_EVENT && event_id == WIFI_EVENT_STA_DISCONNECTED)
    {
        if (s_retry_num < 5)
        {
            esp_wifi_connect();
            s_retry_num++;
            ESP_LOGI(TAG, "retry to connect to the AP");
        }
        ESP_LOGI(TAG, "connect to the AP fail");
    }
    else if (event_base == IP_EVENT && event_id == IP_EVENT_STA_GOT_IP)
    {
        ip_event_got_ip_t *event = (ip_event_got_ip_t *)event_data;
        ESP_LOGI(TAG, "got ip:" IPSTR, IP2STR(&event->ip_info.ip));
        s_retry_num = 0;
        mqtt_start();
    }
}

static void mqtt_event_handler(void *arg, esp_event_base_t base, int32_t event_id, void *event_data)
{
    esp_mqtt_event_handle_t event = event_data;
    switch (event_id)
    {
    case MQTT_EVENT_CONNECTED:
        ESP_LOGI(TAG, "MQTT_EVENT_CONNECTED");

        esp_mqtt_client_subscribe(event->client, TOPIC_GET, 1);

        esp_mqtt_client_subscribe(event->client, TOPIC_SET, 1);

        static const char *data = "{\"id\":\"123\",\"version\":\"1.0\",\"params\":{\"currentTemp\":{\"value\":30}}}";

        esp_mqtt_client_publish(event->client, TOPIC_POST, data, strlen(data), 1, 0);

        break;
    case MQTT_EVENT_DISCONNECTED:
        ESP_LOGI(TAG, "MQTT_EVENT_DISCONNECTED");
        break;
    case MQTT_EVENT_SUBSCRIBED:
        ESP_LOGI(TAG, "MQTT_EVENT_SUBSCRIBED");
        break;
    case MQTT_EVENT_PUBLISHED:
        ESP_LOGI(TAG, "MQTT_EVENT_PUBLISHED");
        break;
    case MQTT_EVENT_DATA:
        ESP_LOGI(TAG, "Received data on topic=%.*s", event->topic_len, event->topic);
        ESP_LOGI(TAG, "Data payload=%.*s", event->data_len, event->data);
        break;
    default:
        break;
    }
}

void wifi_init(void)
{
    ESP_ERROR_CHECK(esp_netif_init());
    ESP_ERROR_CHECK(esp_event_loop_create_default());
    esp_netif_create_default_wifi_sta();
    wifi_init_config_t cfg = WIFI_INIT_CONFIG_DEFAULT();
    ESP_ERROR_CHECK(esp_wifi_init(&cfg));
    esp_event_handler_instance_t instance_any_id;
    esp_event_handler_instance_t instance_got_ip;
    ESP_ERROR_CHECK(esp_event_handler_instance_register(WIFI_EVENT, ESP_EVENT_ANY_ID, &event_handler, NULL, &instance_any_id));
    ESP_ERROR_CHECK(esp_event_handler_instance_register(IP_EVENT, IP_EVENT_STA_GOT_IP, &event_handler, NULL, &instance_got_ip));

    wifi_config_t wifi_cfg = {
        .sta = {
            .ssid = SSID,
            .password = PASSWORD,
        },
    };

    ESP_ERROR_CHECK(esp_wifi_set_config(WIFI_IF_STA, &wifi_cfg));
    ESP_ERROR_CHECK(esp_wifi_set_mode(WIFI_MODE_STA));
    ESP_ERROR_CHECK(esp_wifi_start());

    ESP_LOGI(TAG, "wifi_init_sta finished.");
}

void mqtt_start(void)
{
    char token[256] = {0};

    generate_onenet_token(token, sizeof(token), KEY, TOKEN_RES, TOKEN_TIME);

    esp_mqtt_client_handle_t client;

    const esp_mqtt_client_config_t cfg = {
        .broker.address.uri = MQTT_URL,
        .credentials.client_id = DEVICE_NAME,
        .credentials.username = PRODUCTID,
        .credentials.authentication.password = token,
        .session.keepalive = 120,
    };

    client = esp_mqtt_client_init(&cfg);
    esp_mqtt_client_register_event(client, ESP_EVENT_ANY_ID, mqtt_event_handler, NULL);
    esp_mqtt_client_start(client);
}

void app_main(void)
{

    esp_err_t ret = nvs_flash_init();
    if (ret == ESP_ERR_NVS_NO_FREE_PAGES || ret == ESP_ERR_NVS_NEW_VERSION_FOUND)
    {
        ESP_ERROR_CHECK(nvs_flash_erase());
        ret = nvs_flash_init();
    }
    ESP_ERROR_CHECK(ret);

    wifi_init();
}

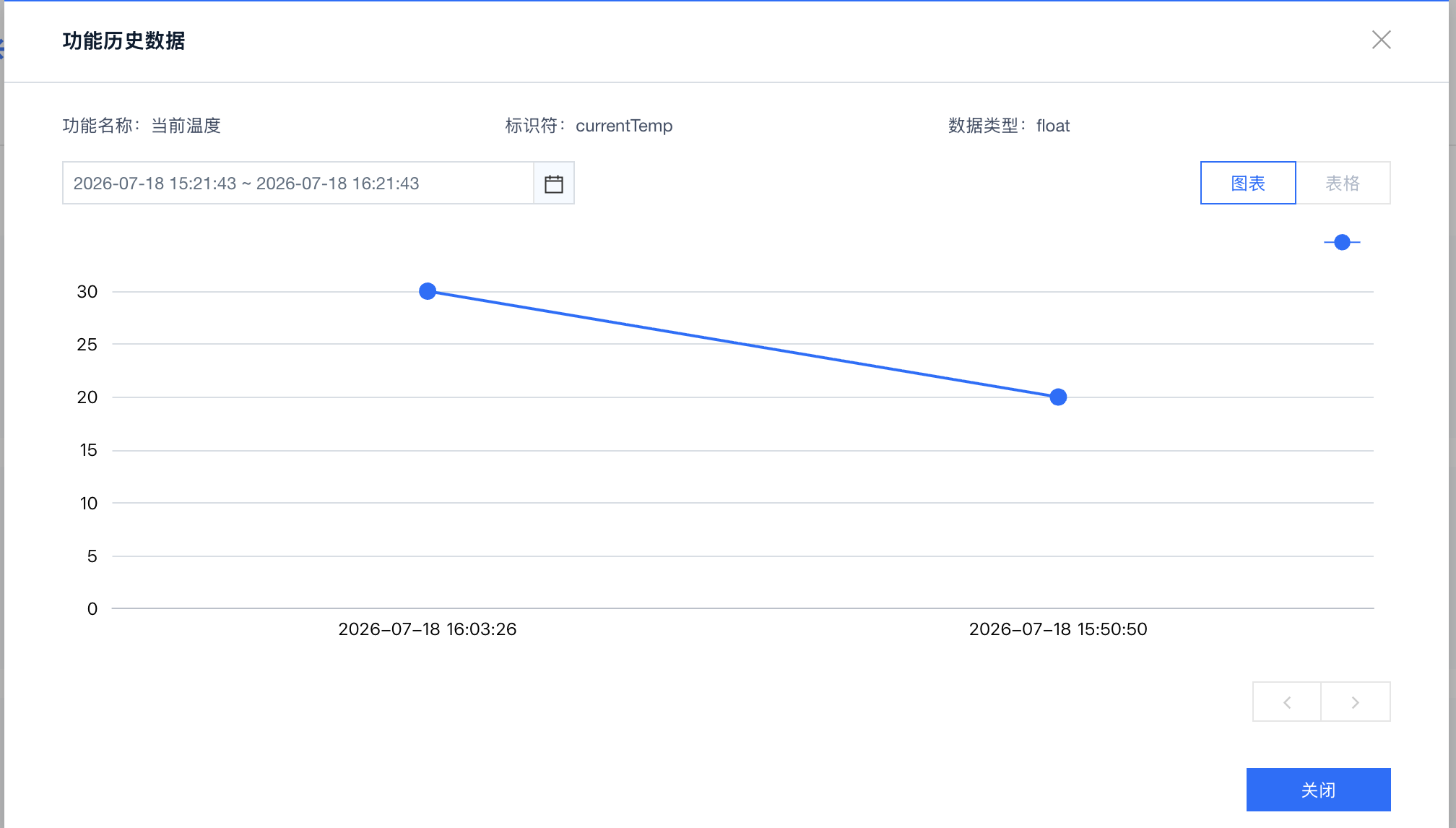

烧录到esp32后OneNet控制台显示温度

串口打印
I (1892) main: MQTT_EVENT_CONNECTED

I (1932) main: MQTT_EVENT_SUBSCRIBED

I (1972) main: MQTT_EVENT_SUBSCRIBED

I (1972) main: MQTT_EVENT_PUBLISHED

4.结尾

前面我们完成了 ESP32 到 OneNET 的数据上报。下一步，我们将加入手机 App 端，打通双向通信。这样即使不在设备身边，也能随时随地通过手机远程监控和控制 ESP32，完成一个完整的物联网远程控制闭环。

秋津圆香

esp32连接OneNet

1.OneNet创建设备

2.ESP32连接设备

3.设备通讯

4.结尾

esp32连接OneNet

评论交流
